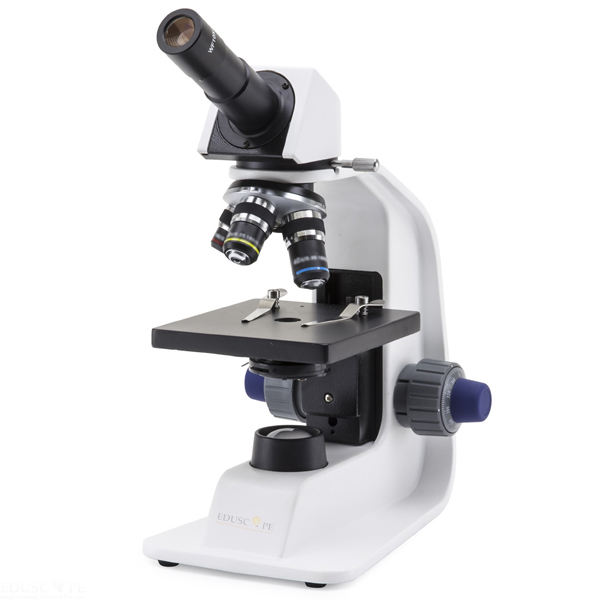

Monocular Brightfield Microscope

Product Code : EDS-SM-11165

Specifications
Eyepieces: Wide field eyepieces WF10x/18mm, secured by screw.
Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings.
Brand: Didactic Lab
Viewing Head: Monocular observation head, 30° inclined and 360° rotatable.
Objectives: HC (high contrast) 4x, 10x, 40x
All with anti-fungus treatment.
Condenser: N.A. 0.65, pre-centered, fixed with iris diaphragm.
Illuminator: X-LED3 with white 1 W LED and light intensity control. Color temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.
Stage: Fixed stage, 130x120 mm. With sample clips.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
