Specimen Mounting Press Manufacturer,Supplier and Exporter in India

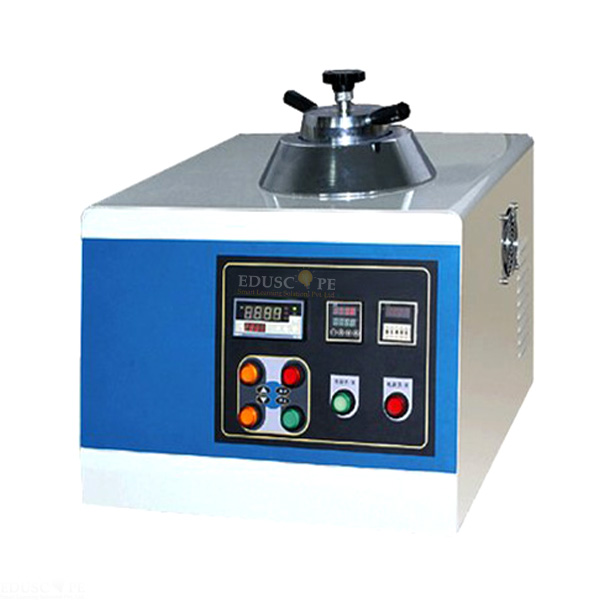

Specimen Mounting Press

Product Code : EDS-STLE-11256

This Machine is Automatic Mounting Press for metallographic specimen.
It is suitable for all Thermosetting Materials, because of the cooling system.
It can make 2 specimens at one time.
It can automatically finish Didactic Lab with the heating temperature, the holding time and acting force.
The operator can change 4 specification patterns according to the difficult specimens.

SPECIFICATION:
Holding time: 0~99minutes and 99 seconds
Out line dimension: 615 x 510x 500mm
Pattern specimen : Φ25mm, Φ30mm, Φ40mm, Φ50mm
Power: 220V 50Hz
Maximum consumption: 1800W
Weight: 110Kg
Cooling: Water cooling
Pressure: 0~2Mpa
Temperature: 0~300°C
